Product Description |

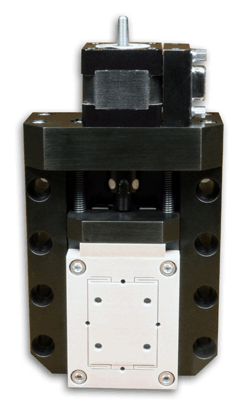

The Nano-SPMZ integrates single axis micropositioning
and high resolution nanopositioning into a compact
unit which is compatible with optical tables and standard
mounting accessories. Stepper motor driven coarse positioning
over 25mm can produce a minimum step size of
95nm. An optional high resolution linear encoder incorporated
into the coarse positioning stage continuously monitors positions down to 20nm. Nanopositioning
over 30 microns provides the ultimate positioning resolution
of 60 picometers with the stability of the proprietary PicoQ®
position feedback sensors. The USB digital
interface provides direct PC control of the micropositioner
and nanopositioner as well as access to the linear
encoder and position sensor inside the nanopositioner. |
Technical Specifications |
|
| Micropositioner | |
| Range of motion |
25 mm |
| Micoropositioning step size | 95 nm |
| Maximum speed | 4 mm/sec |
| Motion Profile | |
| Motion > 500 steps | Automatic accel/decel control |
| Motion ≤ 500 steps | Constant 1 step/ms |
| Linear encoder resolution (optional) | 50 nm |
| Body material | Aluminum |
| Controller | MicroDrive™ |
| Computer interface | Bidirectional USB |
| Nanopositioner | |
| Range of motion (nanopositioner) | 30 μm |
| Maximum resolution (nanopositioner) | 0.06 nm |
| Resonant frequency (nanopositioner) | 4kHz ±20% |
| Resonant frequency (nanopositioner, 100g load) | 2kHz ±20% |
| Resonant frequency (100g load) | 2 kHz ±20% |
| Stiffness | 3.0 N/μm ±20% |
| Recommended max load (horizontal)* | 1.0 kg |
| Recommended max load (vertical)* | 0.5 kg |
| Body material | Aluminum |
| Controller | Nano-Drive® |
| Computer interface | USB |
| * Larger load requirements should be discussed with our engineering staff. | |
