Features
 |
Typical Applications
|
Product Description |
| The Nano-ZL-IX5 series are Z-axis nanopositioning
systems compatible with Evident Scientific IX85
and FLUOVIEW™ inverted microscopes. The
piezo stage fits directly to the IX5-SSA microscope
stage and maintains the sample plane distance. The
Nano-ZL-IX5 series stages have travel ranges up to
500μm and a large center aperture to accomodate
incubators, multiwell plates, petri dishes† and 75mm
slides‡, making them ideal for confocal imaging and
advanced microscopy applications. The Nano-
ZL-IX5 models include Mad City Labs exclusive
PicoQ® position sensor technology ensuring absolute,
repeatable position measurement with nanometer (or
better) resolution under closed loop control.

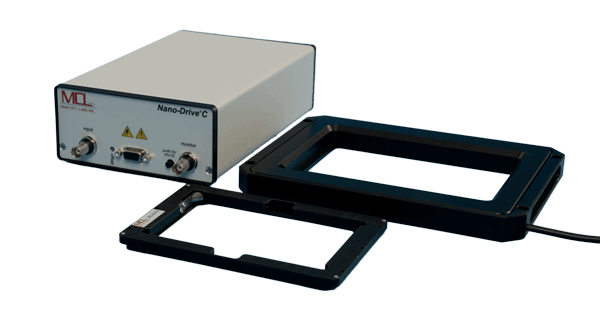

The Nano-ZL-IX5 package includes the Nano-Drive®C closed loop controller with analog and digital control, ACZLFS
frame holder, 1.8m BNC cable, and BNC-SMB adapter. The Nano-Drive®C incorporates the driving amplifier,
sensor electronics and closed loop feedback control. The analog input signal can be sourced via the FV30-analog or
RTC/RTCE using the provided BNC cable and adapter. The Nano-ZL-IX5 can be controlled using cellSens software
or selected 3rd party software. Compatible Software Packages:       |
Product Video |
| |
Technical Specifications |
|
| Range of motion (Nano-ZL-IX5 100) | 100 μm |
| Resolution (Nano-ZL-IX5 100) |
0.2 nm |
| Range of motion (Nano-ZL-IX5 200) | 200 μm |
| Resolution (Nano-ZL-IX5 200) | 0.4 nm |
| Range of motion (Nano-ZL-IX5 300) | 300 μm |
| Resolution (Nano-ZL-IX5 300) | 0.6 nm |
| Range of motion (Nano-ZL-IX5 400) | 400 μm |
| Resolution (Nano-ZL-IX5 400) | 0.8 nm |
| Range of motion (Nano-ZLIX5 500) | 500 μm |
| Resolution (Nano-ZLIX5 500) |
1 nm |
| Resonant Frequency | 250 Hz |
| Recommended max. load (horizontal)* | 0.5 kg |
| Body Material | Aluminum |
| Controller | Nano-Drive® |
| * Larger load requirements should be discussed with our engineering staff. | |
Additional Information | |
Nano-ZL-IX5 series Drawing |
Nano-ZL-IX5 series Catalog Pages |
| The Nano-ZL Series is a featured product on our Piezo Stage website, which highlights our high-speed z-axis positioners. Additional information and resources are available there. | |
